EIFA
nstrumentation Cable – Individual Screen under Sheath + General
Shielding with Aluminum/Polyester Foil + Double Galvanized Steel Strip Armor

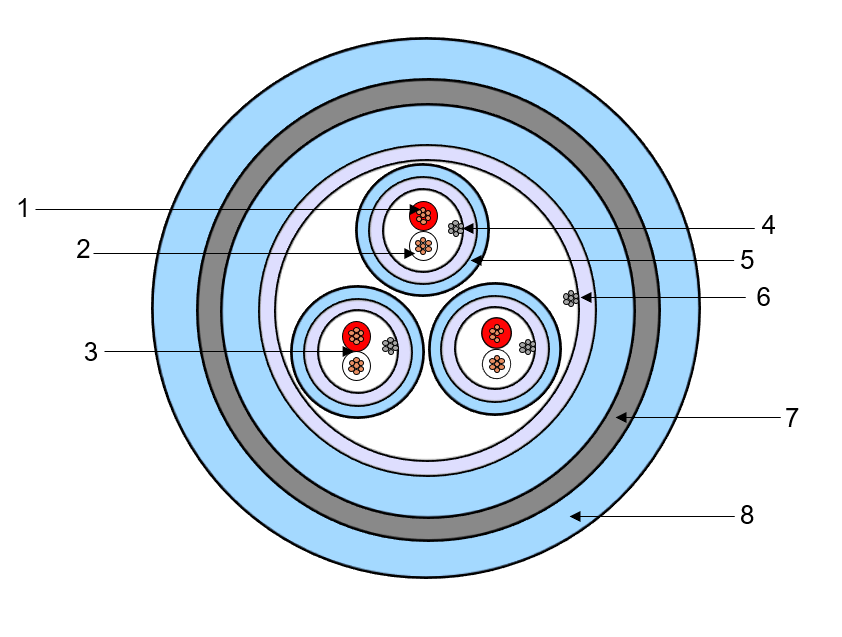

1.
Solid bare copper conductor, Class 2 (IEC 60228
2.
PVC Insulation, conductor color coding according to NF M 87-202
3.
Assembly in twisted pairs
4.
Individual shielding with Aluminium/polyester tape with tinned copper drain wire (per pair)
5.
PVC Individual sheath on each shielded pair
6.
Overall shielding with Aluminium/polyester tape with tinned copper drain wire
7.
Armor with double layer of galvanized steel tape (enhanced mechanical protection)
8.
PVC Outer sheath in Grey or Blue (other colors on request)
Usage
The EIFA cable is specifically designed for signal transmission in industrial environments with high mechanical and electromagnetic constraints. Thanks to its individual shielding under sheath + general shielding and double steel strip armor, it offers both excellent immunity against interference and high resistance to mechanical damage (impact, crushing, rodents).
- Process instrumentation: connection between sensors, transmitters and acquisition systems.
- Industrial control systems.
- Mechanically severe environments: tunnels, trenches, outdoor sites, exposed industrial areas.
- ATEX zones (blue sheath version) for intrinsically safe circuits.
